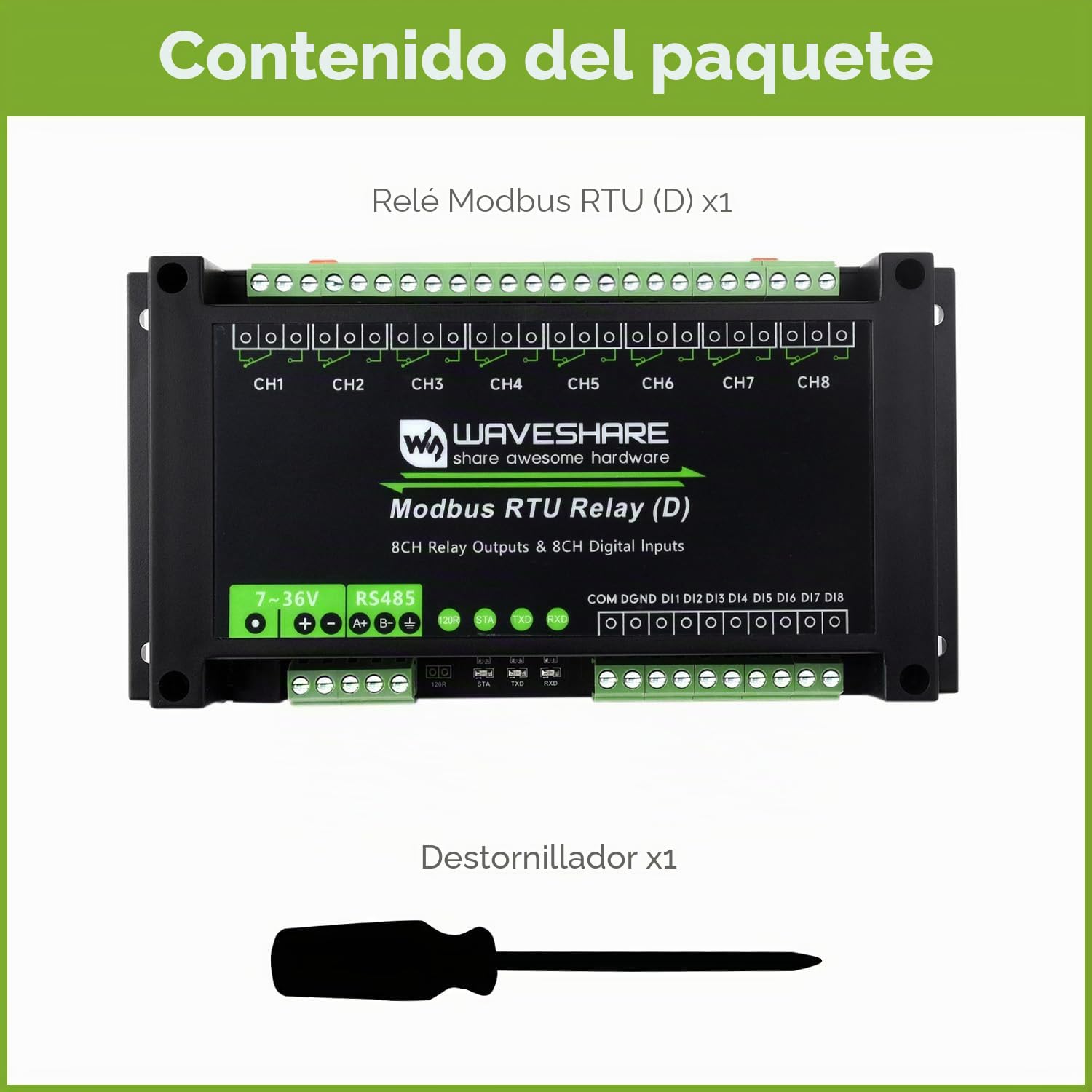

Waveshare Industrial Modbus RTU 8-Ch Relay Module (D) with Digital Input and RS485 Interface, Multi Isolation Protection Circuits, 7~36V Power Supply

Tipo de conector: RS485
Material de contacto: Plata
Tipo de contacto: Normal abierto
Corriente nominal: 10 Amperios
Tipo de montaje: Montaje en panel
Marca: Waveshare
Modo de funcionamiento: Automático
Voltaje de la bobina: 36 Voltios
Valoración actual de contacto: 10 Amperios
Tensión máxima de cambio: 36 Voltios

- Configurable device address (1~255), multi devices can be cascaded on RS485 bus. Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic. Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
- Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability. Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. The relay supports digital input linkage control or toggle control
- Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection. High quality relay, contact rating: ≤10A 250VAC/30VDC. Rail-mounted ABS plastic enclosure, easy to install, safe to use. Multiple LEDs for indicating the MCU status and signal transceiving status
